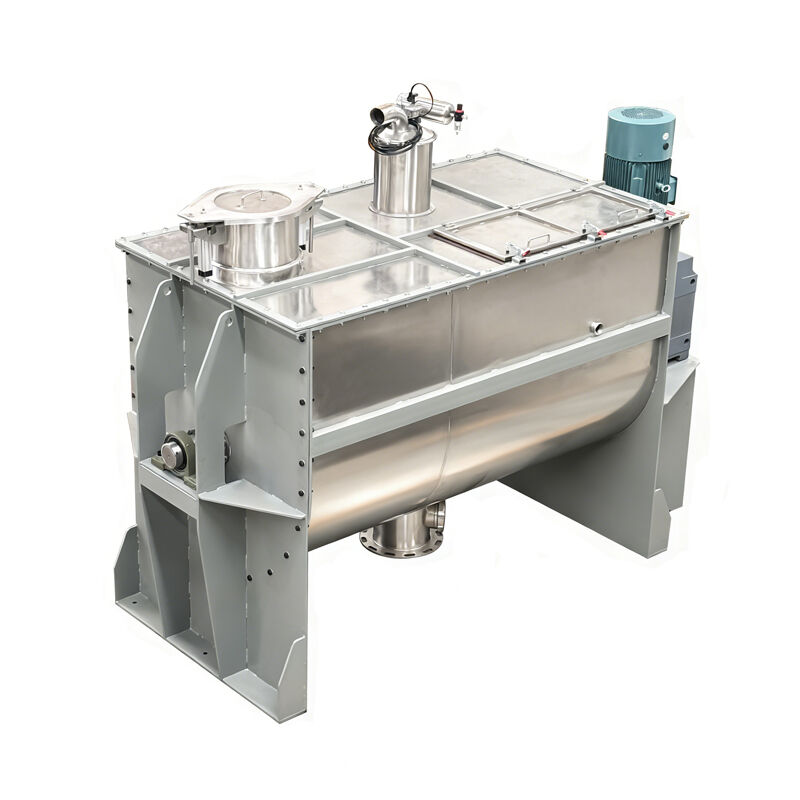

Ribbon Blender

Product description

The helical mixer is an efficient and versatile mixing equipment. Its unique design enables it to handle a wide range of materials with various properties, from powders and granules to viscous pastes. During the mixing process, this equipment can achieve gentle and thorough stirring, ensuring that every part of the material is evenly combined. It is particularly suitable for handling high-demand mixing tasks. With its outstanding mixing effect, wide material adaptability, and stable and reliable performance, it plays a significant role in numerous industrial fields.

Working principle

The core working principle of the spiral mixer lies in its unique spiral-shaped stirring paddle and the combined motion of the materials within the barrel.
When the equipment is started, the spiral belt on the central axis lifts the material upward from the bottom, just like a slow spiral conveyor. At the same time, the spiral belt installed on the outer side of the mixing arm moves in the opposite direction, compressing and transporting the material downward from the top.
This up-and-down, opposite-direction movement created a powerful circulation flow in the mixing chamber. During the process of continuous lifting, scattering, and pulling down of the materials, they intermingled, diffused, and permeated with each other. Moreover, the friction between the materials themselves and the spiral belt, the cylinder wall, as well as the relative sliding of the material particles, further enhanced the uniformity of the mixing.
This combination of axial circulation flow and radial disturbance ensures that even materials with significant differences in density and particle size can achieve a highly uniform mixing state within a short period of time.

Product features

1. Uniform mixing: Dual screw convection and shearing ensure thorough material integration.
2. Wide application range: Suitable for both dry powder and viscous paste-like materials.
3. Gentle mixing: Minimal damage to material particles, preserving original properties.
4. Complete discharge: Special barrel design and discharge mechanism result in minimal residue and easy cleaning.
5. High loading capacity: Large effective volume, capable of handling multiple batches efficiently.
6. Stable operation: Robust structure and durability enable it to meet continuous production requirements.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

Product details

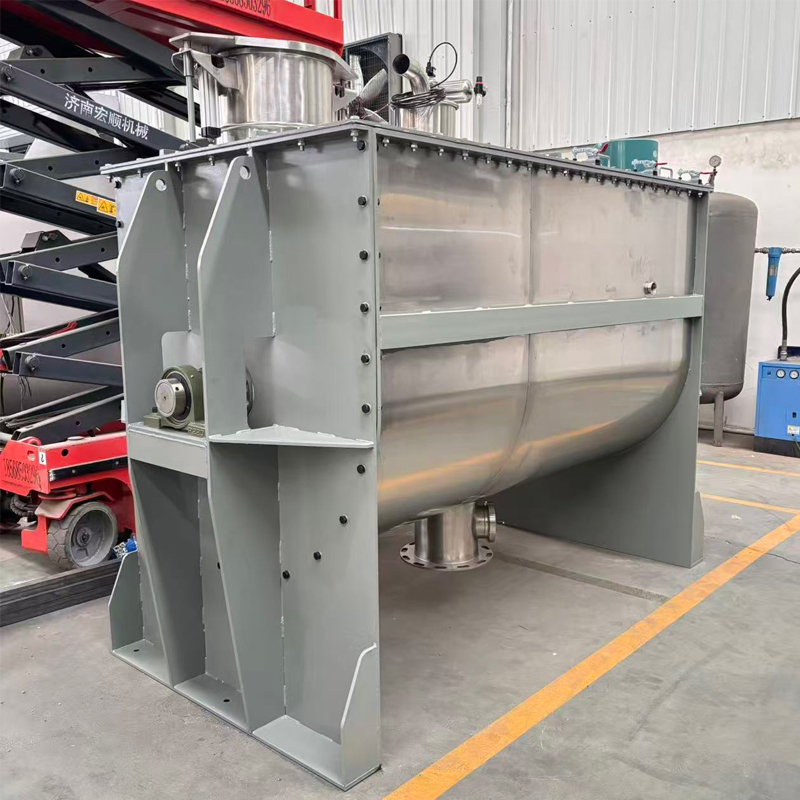

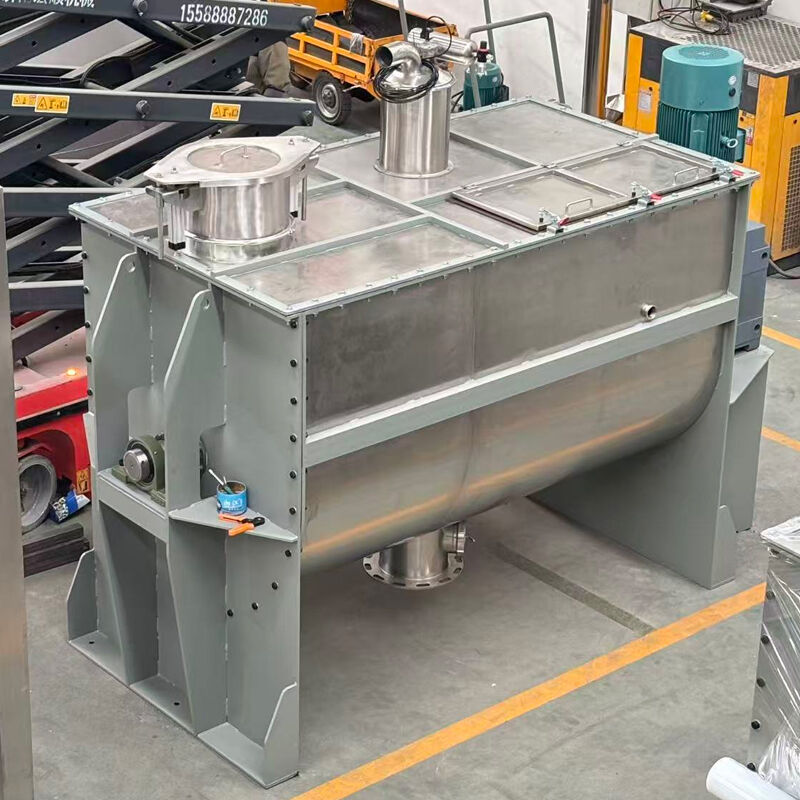

Product shows

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
