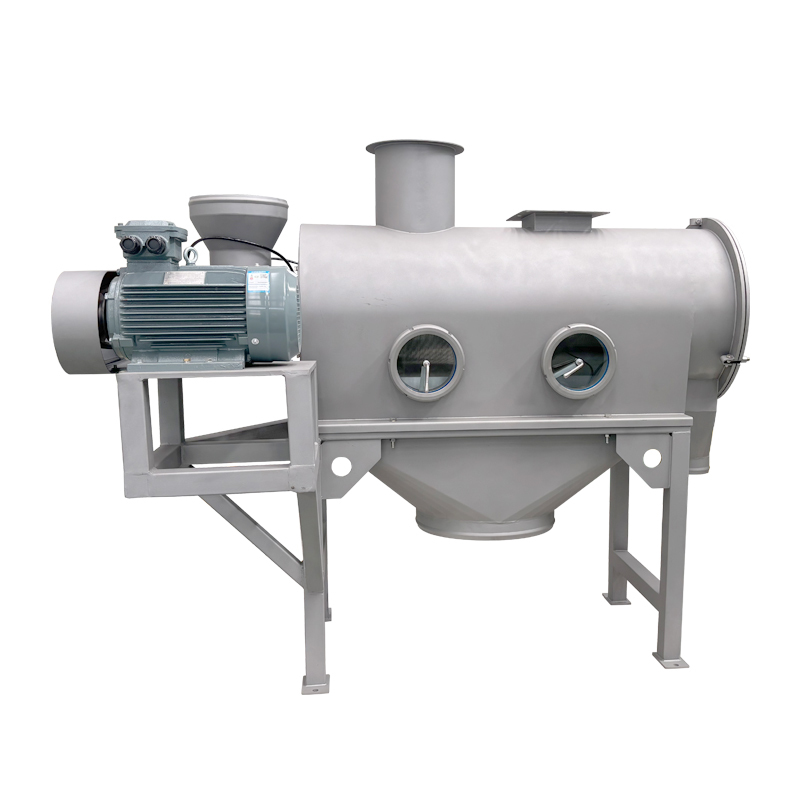

Air-flow Sifter Machine

Product description

The air flow sieve is a specialized equipment that achieves fine screening through the kinetic energy of air flow. Its core components include the sieve cylinder, the fan and the aggregate collection system.
It is suitable for powders, micro-particles and other materials. It has the advantages of high screening efficiency and precise accuracy. Moreover, during operation, it is unlikely to encounter screen blockage problems, and can stably ensure the screening quality.
At present, this equipment has been widely applied in various industries such as food and chemical, providing support for precise screening operations in various production scenarios.

Working principle

The working principle of the air flow sieve is based on the synergy between the kinetic energy of the airflow and the sieve structure: After the equipment is started, the fan generates a negative pressure airflow, which sucks the powder or micro-particle materials to be sieved into the sieve cylinder. Under the drive of the airflow, the materials move at high speed along with the airflow. During this process, the fine particles with diameters smaller than the sieve holes can smoothly pass through the sieve and enter the subsequent collection system; while the coarse impurities with excessive diameters cannot pass through the sieve and will be continuously pushed towards the discharge port at the end of the sieve cylinder by the airflow, and finally be discharged from the equipment. Thus, the fine separation of the materials is completed.

Product characteristics

1. Efficient and precise screening, suitable for cohesive materials;
2. Closed operation without dust, environmentally friendly and reduces material waste;
3. Good anti-blocking performance, capable of continuous and stable operation;
4. Wide application range, meeting the needs of multiple industries.

Application

Food: Flour, starch, milk powder, powdered sugar, etc.;
Medicine: Chinese herbal powder, raw materials for Western medicine, medicinal excipients;
Chemicals: Resin powder, pigment powder, coating powder;
Others: Cement powder, talcum powder, battery material micro-powder.

Model	Screen cage size(mm) (diameter*length)	Screen material	Structure material	Mesh size	Power (kw)
EQLS-18065	180mm*650mm	Stainless steel or Nylon screen	Q235A	≤1000	2.2
			SUS304
EQLS-30010	300mm*1000mm		Q235A	≤1000	4
			SUS304
EQLS-50013	500mm*1300mm		Q235A	≤1000	5
			SUS304
Machine can be customized based on your need

Product details

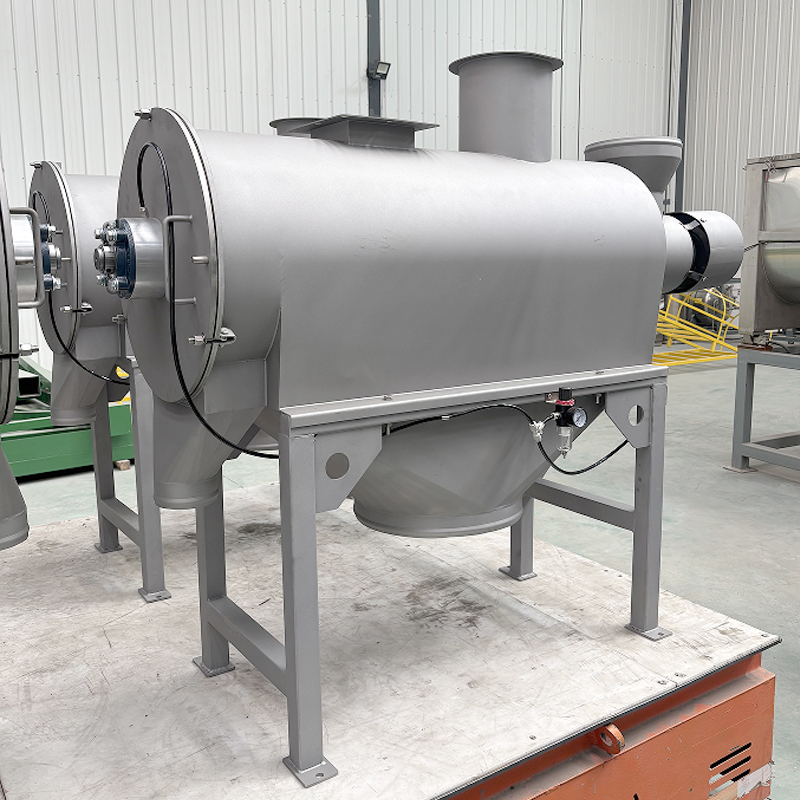

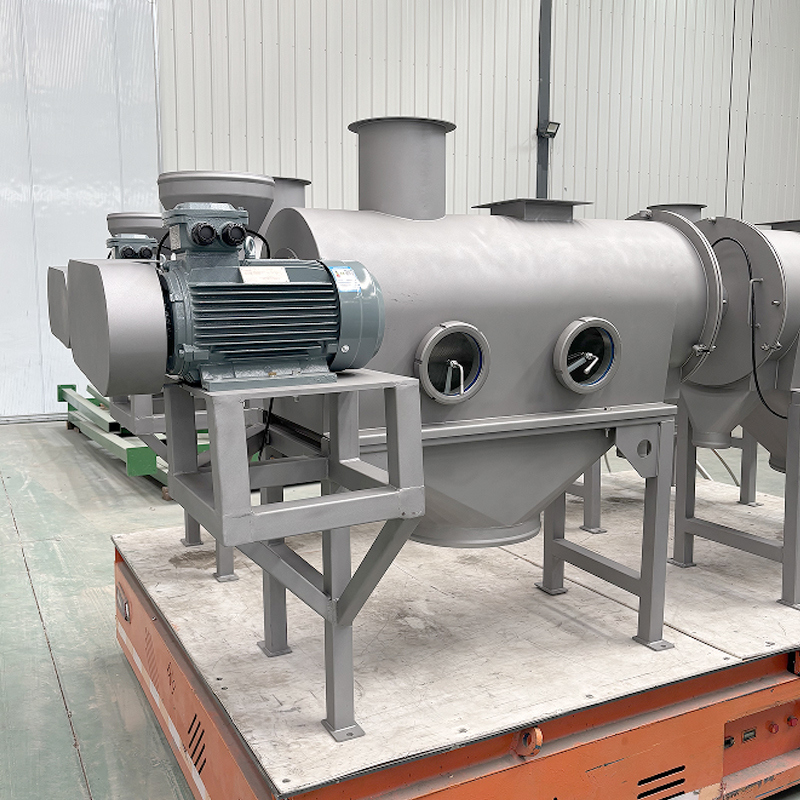

Product shows

Packaging & Shipping

Why choose us

About us

Company Profile

We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
